Product Details:
|
| Tool Model: | TDC-TF1 | Traction Power: | 12000N Max |
|---|---|---|---|
| Stroke: | 25mm | Capacity: | 5.2mm, 6.4mm, 7.5mm |
| Noise Level: | <80dB | Battery: | 18V 2.0Ah 5cells Li-ion |
| Charge Time: | 60min. | Weight: | 1.79kg (without Battery) |
| Battery Weight: | 0.36kg | Charger: | 100V-240V AC/50-60Hz |
| High Light: | 25mm Stroke Blind Rivet Tools Battery,Blind Rivet Tools Battery 25mm Stroke,Blind Rivet Tools Battery Stroke 25mm |
||

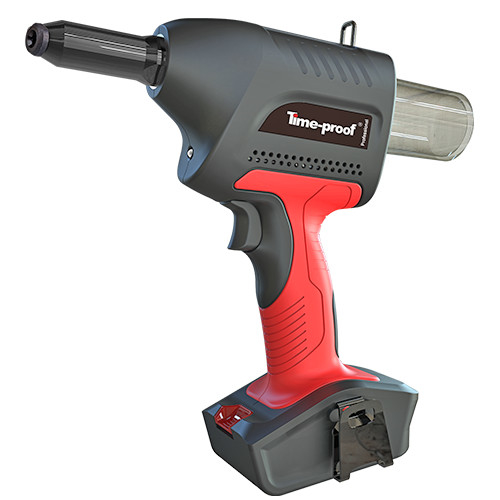

Cordless Brushless Blind Rivet Tool Battery Riveting Tool For Folding Structural Rivets CE TDC-TF1
PRODUCT DESCIPTION
NEW DESIGN - POWERFUL - BRUSHLESS
Main Features:
Modular Design:
It is a further more approach in design of the tool range for reducing the costs and necessary stock items for production, maintenance and repair. Time-proof pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models. It remarkably helps to the distributors in service management.
Specifications:
|
TDC-TF1 Cordless Rivet Tool
|
|||
|---|---|---|---|
| Main performance parameters | Traction Power | 12000N max | |
| Stroke | 25mm | ||
| Cycle Time | 2 sec. | ||
|
Capacity
|
folding structural rivets | Aluminum | 5.2mm, 6.4mm, 7.5mm |
| folding structural rivets | Steel | 5.2mm, 6.4mm, 7.5mm | |
| folding structural rivets | Stainless steel | 5.2mm, 6.4mm, 7.5mm | |
| Battery & Charger | Battery | 18V 2.0Ah 5cells Li-ion | |
| Charger | 100V-240V AC/50-60Hz | ||
| Charging Time | 60min. | ||
BATTERY FEATURES
BENEFITS
Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;
FACTORY
Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.
