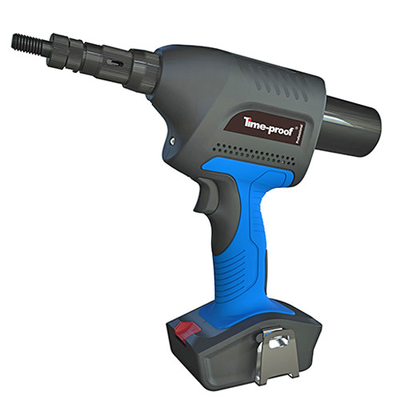

Cordless Rivet Nut Setter M3 M10 8mm Stroke Automatic Rivet Gun

Certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
China Shanghai Time-Proof Riveting Tools Manufacturing Co., Ltd. certification
I'm Online Chat Now

Cordless Rivet Nut Setter M3 M10 8mm Stroke Automatic Rivet Gun

Cordless Rivet Nut Setter M3 M10 8mm Stroke Automatic Rivet Gun
Cordless Rivet Nut Setter M3 M10 8mm Stroke Automatic Rivet Gun

Large Image :  Cordless Rivet Nut Setter M3 M10 8mm Stroke Automatic Rivet Gun

Product Details:
Place of Origin: China
Brand Name: Time-proof
Certification: CE
Model Number: TDM100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Rigid Plastic Box
Delivery Time: 5-35 work day
Payment Terms: T/T, L/C
Supply Ability: 3000pcs per month

Cordless Rivet Nut Setter M3 M10 8mm Stroke Automatic Rivet Gun

Description
Tool Model: TDM100 Traction Power: 22,500N Max
Stroke: 8mm Capacity: M3-M10 Rivet Nuts
Noise Level: <80dB Battery: 18V 2.0Ah 5cells Li-ion
Charge Time: 60min. Weight: 2.01kg (without Battery)
Battery Weight: 0.36kg Charger: 100V-240V AC/50-60Hz
High Light:

Cordless rivet nut setter M10

,

8mm Stroke M10 automatic rivet gun

,

rivet nut setter M3



Cordless RIvet Nut Setting Tool Battery Riveting Tool Brushless Rivet Gun Up To M10 Fast Automatic Powerful TDM100



PRODUCT DESCIPTION




Cordless - Up to M10 - AUTOMATIC - POWERFUL - BRUSHLESS





Main Features:

  • Automatically insert rivet nut.

  • More Powerful & Fast
  • LED light. Lighting & Fault Indication

  • Powerful Li-ion battery..

  • Quick release battery.

  • Double side installable belt clip

  • Advanced electrical circuit.

  • Accurate electricity level display.









Specifications:



TDM100 Cordless Riveting Nut Tool



Main performance parameters Traction Power 22,500N max
Stroke 8mm
Net Weight 2.01kg (without battery)
Capacity Rivet Nuts Aluminum M3-M10
Rivet Nuts Steel M3-M10
Rivet Nuts Stainless steel M3-M10
Battery & Charger Battery 18V 2.0Ah 5cells Li-ion
Charger 100V-240V AC/50-60Hz
Charging Time 60min.





Cordless Rivet Nut Setter M3 M10 8mm Stroke Automatic Rivet Gun 0





BATTERY FEATURES



  • The battery has a protective circuit.

  • Setting about 800 pieces M8 rivet nuts with a single full charged battery.

  • The effective capacity of the battery is still not less than 70% of the original capacity after 500 charging and discharging.

  • The battery can display the accurate electric level without be attached to the tool.



Modular Design:

It is a further more approach in design of the tool range for reducing the costs and necessary stock items for production, maintenance and repair. Time-proof pneumatic riveting tool range possesses a number of parts assemblies interchangeable among different models. It remarkably helps to the distributors in service management.





BENEFITS


Helping to the manufacturer organizing wide range of the tool series, and further developing customized tools at lower costs; Helping to the distributors easily organizing full range of the tools; and conveniently carrying out after-sale services;





FACTORY


Shanghai Time-proof Riveting Tools Manufacturing Co., Ltd. is a tools manufacturer company in China specialized in developing and manufacturing setting tools for blind rivets, blind rivet-nuts and other fasteners.
Time-proof ® tools earned the company good fame with experienced team of R&D and marketing. Professional pneumatic and hydraulic tool series adopts MD (Modular Design) technology and enjoys most of the tool parts for the series are interchangeable, promising convenient after-sale services for the tools distributors in China as well as overseas. The company designs and manufactures hand riveting tools as well, by inviting customers with their own tools profiles design and private logo tools.



Cordless Rivet Nut Setter M3 M10 8mm Stroke Automatic Rivet Gun 1
